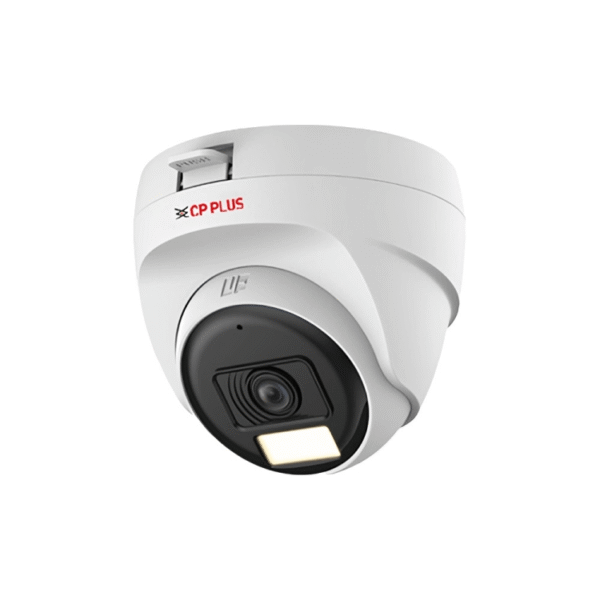

CP PLUS 2.4MP Full Color Illumax Dome Outdoor Security Camera, 3.6mm Lens, 30fps, Inbuilt Mic

About this item

• Brand : CP Plus; LED light : Support Auto/Manual model,brightness can adjustable
• Dimension : 73.2mm x 73.2mm x 108mm
• Lens : 3.6mm Lens (6mm Optional)
• Power Consumption : Max. 5W (Max. 5W with IR cut filter on)
• Mounting Type: Embedded; Included Components: Camera Body; Specific Uses For Product: Surveillance

Technical Details

• Image Sensor 5MP PS CMOS Image Sensor
• Minimum Illumination 0.02 lux F2.0 (Color, 30 IRE) 0.002 lux F2.0 (B/W, 30 IRE) 0 lux (IR on)
• Max. Resolution 2880 (H) × 1620 (V)
• Shutter Speed 1/25 s–1/100,000 s/ NTSC: 1/30 s–1/100,000 s
• White Balance Auto, Area white balance
• Lens 3.6mm (2.8mm optional)
• Lens Type Fixed-focal
• Max. Aperture F2.0
• DORI Distance 2.8 mm: Detect:66.0 mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 13.2 Mtr. 3.6 mm: Detect: 76.0 Mtr., Observe: 30.4 Mtr., Recognize: 15.2 Mtr., Identify : 7.6 Mtr.
• Lens Mount M12
• Close Focus Distance 2.8 mm:1.0 m ; 3.6 mm: 1.3 m
• Gain Control (AGC) Auto
• Pan, Tilt, Rotation Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
• S/N Ratio More than 65dB
• Angle of View 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 10°
• Back Light Compensation BLC/HLC/DWDR
• Video Streaming CVI: PAL: 5M@25 fps, 4M@25 fps, 1080p@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 1080p@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps CVBS: PAL: 960H, NTSC: 960H
• Resolution 5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• Noise Reduction 2D NR
• Privacy Mask Off/On (8 areas, rectangle)
• Audio Input 1 channel built-in Mic
• Day/Night Auto(ICR)/Color/B/W
• Mirror Function Support
• IR Distance IR Range of 30 Mtr.
• Warm Light Distance Warm Light Range of 20 Mtr.
• IR Mode Smart IR&WL, WL Mode, IR Mode
• IR Control Fixed
• Anti-corrosion Level Basic Protection
• Audio Built-in Mic
• Operating Temperature –40 °C to +55 °C (–40 °F to +131 °F)
• Operating Humidity <95% (RH), non-condensing
• Storage Temperature –40 °C to +55 °C (–40 °F to +131 °F)
• Storage Humidity <95% (RH), non-condensing
• Power Source 12 VDC ± 30%
• Power Consumption Max 2.6W (12V DC, WLED on)
• Casing Plastic
• Dimension 85mm × 771mm
• Weight 0.11 kg
• Warranty 2 Years
